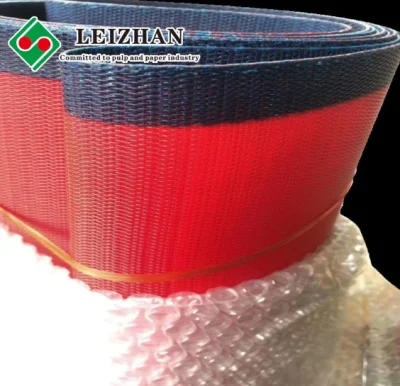

Red Color Melt Blown Cloth Conveyor Belt Fabric

Get high-quality Red Color Melt Blown Cloth Conveyor Belt Fabric from our factory. Durable and reliable fabric for conveyor belt applications.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Advantage
  • Product Show
  • Product Parameters
  • Work Shop Show
  • FAQ
  • About Us
Overview

Basic Info.

Model NO.
LE-MBC0401
Caliper
1.7mm
Transport Package
Standard Air or Sea Transport Package
Specification
According to customized
Trademark
LEI ZHAN
Origin
China
HS Code
59113100
Production Capacity
50000 Piece/Year

Product Description

Red Color Melt Blown Cloth Conveyor Belt Fabric

Product Description

Description of Meltblown conveyor belt

Meltblown conveyor belt is also called Meltblown mesh belt, which is widely used in mask melting blown cloth production line and other industries on non-woven nonwoven equipment.
Red Color Melt Blown Cloth Conveyor Belt Fabric

Advantage

1. Advanced compilation technology
The meltblown conveyor belt is mainly woven by advanced weaving technology-selected PET with a small cross-sectional size, so that the air permeability of the mesh belt is even during operation, without arching, hanging wire, and deformation.

2. Durable
As the carrier of meltblown cloth, it has a certain friction, good flexibility, high tensile strength and strong anti-wrinkle ability.
3. The surface of the mesh belt is clean and smooth, and the product is perfectly shaped.
The surface of the meltblown conveyor belt is relatively smooth, and the product has a good feel. It can not only be attached to the mesh surface for transportation, but also can be easily separated from the mesh belt, and there will be no drift during the conveying process, so that the product is perfectly shaped.

Red Color Melt Blown Cloth Conveyor Belt Fabric

4. Stability is greatly improved by 100%
Our company adopts secondary qualitative technology, which is qualitatively stable, and does not shrink or deform under high temperature environment. Compared with the traditional primary shaping, the stability is 100%.

5. Long service life
Good performance in acid, alkali, high temperature 180° environment, long service life.

6. Seam Connection

There are two types of joints for meltblown conveyor belts, one is endless connection and the other is seam connection . The thickness of the joint is the same as the replacement thickness, and no roll skipping occurs. The joint is flat and has no mesh marks, no deviation, no Hang silk.

Red Color Melt Blown Cloth Conveyor Belt Fabric

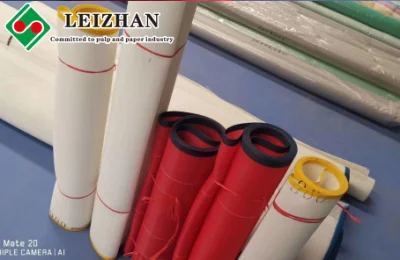

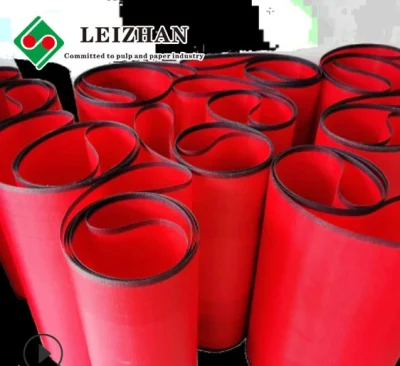

Product Show



Red Color Melt Blown Cloth Conveyor Belt Fabric
Red Color Melt Blown Cloth Conveyor Belt Fabric
Red Color Melt Blown Cloth Conveyor Belt Fabric

Red Color Melt Blown Cloth Conveyor Belt FabricSeam of Meltblown conveyor belt

There are two types of joints for meltblown conveyor belts, one is endless  connection  and the other is seam connection . The thickness of the joint is the same as the replacement thickness, and no roll skipping occurs. The joint is flat and has no mesh marks, no deviation, no Hang silk.
Red Color Melt Blown Cloth Conveyor Belt Fabric

Product Parameters

Weave type  Plain Weave
Warp diameter:  0.58 mm×0.38 mm
Weft diameter:  0.60 mm/0.60 mm
Warp density:  18 root /cm
Weft density:  11.2 root/cm
Air Permeability:  601CFM
Caliper 1.7mm
Surface Strength:  ≥2000N/cm
Connection Strength:  ≥800N/cm

Work Shop Show



Red Color Melt Blown Cloth Conveyor Belt Fabric

FAQ

1. Q: Can I have a sample order for pulp washing belt?

A: Yes, we can provide free sample together with our catalogue for customer to test and check quality.
But the freight charge will on your side. We'll refund the freight charge when you make an order.
2.Q:  How to proceed an inquiry for pulp washing belt ?
A: You need to provide
    1)Use propuse
    2)Size
You can also indicate if you have any special requirement. We'll recommend most suitable type for you and provide a formal quotation list after your inquiry received.

3.If the products can be customized?
A: Welcome OEM and ODM service, custom designs and dimensions are acceptable.

About Us

Red Color Melt Blown Cloth Conveyor Belt FabricLEIZHAN INTERNATIONAL GROUP is specialized in the design, manufacture and sales of paper machinery and its spare parts. We located in Jiangsu,founded in 2002.The Group currently employs 400 people, including about 60 special product development teams, including product designers, product engineers, and so on. As a professional manufacturer, the group focuses on the pulp and paper industry, has sophisticated CNC machining equipment,complete product testing methods, advanced ability of project designing, researching and developing, processing and manufacturing of products. We provide customers with the best quality machinery and equipments. Our team and engineers can provide designing plans according to the customers' needs and budgets of the project to retrench the project investments, to easy the operation of the project and to quick the effects. Also,we can send experienced engineers to guide the installations for the customers and to solve customers' worries.

Customer's satisfaction is our goal !

Red Color Melt Blown Cloth Conveyor Belt Fabric
